Factorio BlueprintsAll nuclear reactor blueprintsBelt-Based Uranium Power Plant Blueprint with Fuel-Saving Logic (480 MW)
Belt-Based Uranium Power Plant Blueprint with Fuel-Saving Logic (480 MW)
A four-reactor plant fuelled by belt with logic that saves cells; the book adds a 16-reactor plant of about 2 GW.

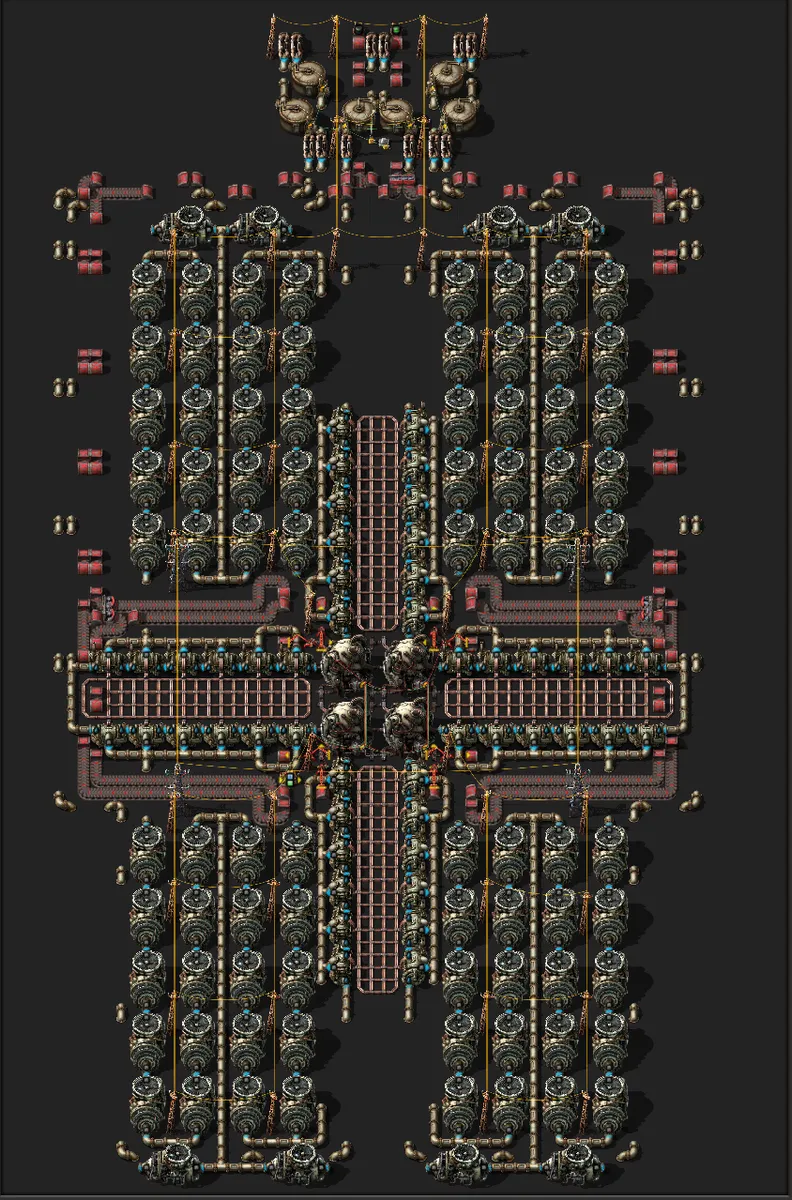

Image of the GuestofHades Belt-Based Plant nuclear plant blueprint
How much power does it make? 4 reactors, 480 MW
480 MWOutput (computed)
Reactors4Heat exchangers48Steam turbines88
- Reactors
- 4
- Output (computed)
- 480 MW
- Heat exchangers
- 48
- Steam turbines
- 88
- Reactors : exchangers : turbines
- 4 reactors : 48 heat exchangers : 88 steam turbines
- Fuel handling
- belt-fedFuel cells arrive on a belt and inserters load them.
- Size (tiles, width x height)
- 52 x 93
- Entity quality
- normal
- String exported by Factorio
- 2.0.32.0
- Designer
- GuestofHades
String exported by Factorio 2.0.32.0. Decoded and checked by this site; not test-imported in the game.
Output (computed)
The output shown is computed by this site from the blueprint itself, using normal-quality numbers from the official wiki. Each reactor makes 40 MW of heat plus another 40 MW for every fuelled reactor touching it, which is why a 2x2 block gives 480 MW and a long double row gives 160 MW per reactor minus 160 MW. A heat exchanger turns at most 10 MW of heat into steam and a steam turbine turns that steam into 5.82 MW, so the plant delivers whichever of the three totals is smallest: reactor heat, exchanger capacity or turbine capacity.
Heat exchanger and turbine ratio
A plant is balanced when its exchangers can take all the reactor heat and its turbines can use all the steam. With normal-quality buildings that is one heat exchanger for every 10 MW of heat and about 1.72 turbines per exchanger, because one exchanger makes roughly 103 steam per second and one turbine uses 60. Compare this plant's counts with that: more turbines than needed is harmless, but too few exchangers caps the output.
How fuel cells get in
Fuel cells come in on a belt and inserters load each reactor, so the plant runs without robots; feed the belt from your fuel-cell production and take spent cells out. A fuel cell burns for 200 seconds whether or not the power is used, so belt-fed designs that save fuel use circuit conditions on the inserters to load only when a reactor runs cool.
Fuel cells are loaded from a belt, and the logic holds them back until the reactors need heat. The design was made in the Space Age era.
Other plants in this blueprint book
The book's second plant has 16 reactors and about 1,920 MW, with the same belt fuelling.
Blueprint string
Your browser blocked copying. Click the string box, select all and copy it yourself.
Copy the string and press Import string on the shortcut bar in the game, then paste. It was exported from the Factorio 2.0 version shown above. This site decoded it and counted the reactors, exchangers and turbines, but did not import it in the game; check the designer's notes above for water and start-up needs.
