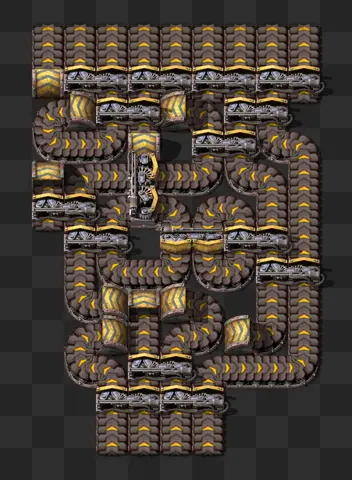

4-9 yellow balancer
- Size (tiles, width x length)
- 9 x 13
- Throughput unlimited
- No
Factorio BlueprintsAll belt balancersFactorio 4 to 9 Balancer Blueprint
Factorio 4 to 9 Balancer Blueprint
Four belts spread over nine outputs in 9 x 12 tiles with 16 splitters. Balanced, not throughput unlimited; a yellow version is listed.

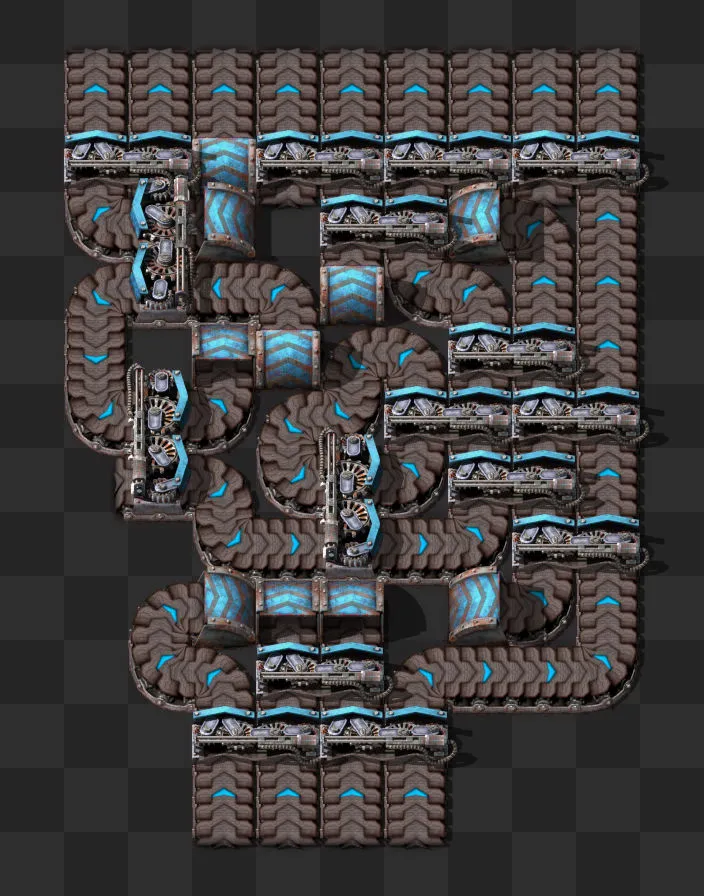

In-game render of the 4 to 9 balancer blueprint
4 to 9 balancer for red, blue and turbo belts
49
- Input belts
- 4
- Output belts
- 9
- Balancer type
- belt
- Size (tiles, width x length)
- 9 x 12
- Listed belt tiers
- redbluegreen (turbo)
- Throughput unlimited
- No
- Input balanced
- Yes
- Output balanced
- Yes
- Entities in the blueprint
- Express transport belts
- 48
- Express splitters
- 16
- Express underground belts
- 10
- String exported by Factorio
- 2.0.69.0
- Designer
- raynquist
String exported by Factorio 2.0.69. Decoded and checked by this site; not test-imported in the game.
Is the 4 to 9 balancer throughput unlimited?
No. It is balanced: it draws evenly from every input and gives every output an equal share. It is not throughput unlimited, so when only some inputs are fed or some outputs are blocked, an internal bottleneck can keep the total below what the remaining belts could carry. That is fine where all belts run full; where they often do not, check the other layouts and nearby configurations for one marked throughput unlimited.
Belt tier note
Built with express (blue) belts, splitters and undergrounds. The collection lists this layout as working with red, blue and turbo undergrounds. For yellow belts it keeps a separate version, which appears with its own string under the other layouts below.
Compatible underground tiers listed by the source: red, blue, green (turbo). A yellow-belt alternate exists in the downgrades folder.
Source
- Book
- Raynquist's Belt Balancers Fall 2025
- Book folder
- 4 to x
- Name in the book
- 4-9 balancer
- The book covers
- 1-1 to 9-9, plus some 10-x, 12-x, 16-16, 32-32, 64-64 and 128-128 configurations; lane balancers for 1, 2, 3, 4, 6 and 8 belts; yellow-belt alternates in a downgrades folder
Other 4 to 9 balancer layouts
The yellow version is one row longer at 9 x 13 and built from basic parts; like the main layout it is not throughput unlimited.
4 to 9 balancer blueprint string
Your browser blocked copying. Click the string box, select all and copy it yourself.
The string was exported from Factorio 2.0.69. Copy it, open the game and press Import string on the shortcut bar, then paste. This site decoded the string and checked the entities and size against the preview, but did not import it in the game.
Is there a 4 to 10 balancer?
No. For four input belts the collection has 4 to 1 through 4 to 9 and 4 to 12, but no 4 to 10. This 4 to 9 is the closest; the 4 to 12 is throughput unlimited, so it still works if you leave two of its outputs unused.
